Build Your Rig

FERRUM SERIES · By a Pilot for Pilots

Build Your Rig
Like We Do

Pick your Ferrum. Five models, one philosophy - engineered, tested, flown by the team. Below are the exact setups we run on every frame in the series.

What We Fly on Ferrum 25

2.5" micro. Indoor and park-ripping. Same team setup across every Ferrum 25 in the squad.

Luceed.
Founder · Team Captain
  • FrameFerrum 25
  • MotorsT-Motor F1103 8000KV
  • AIO StackJHEMCU F411 ELVTX
  • PropsGemfan Hurricane 2520
  • BatteryTattu 2S 450mAh 75C
  • CameraRuncam Nano 4
  • VTXAnalog (AIO) · or DJI O4 Lite
Ferrum Team
High-End · Pilot's Personal Pick
  • FrameFerrum 25
  • MotorsBetaFPV LAVA 1404 7200KV
  • AIO StackFlywoo GOKU F405 ERVT
  • PropsGemfan Hurricane 2520
  • BatteryTattu 2S 450mAh 75C
  • CameraCaddx Baby Ratel 2
  • VTXDJI O4 Lite (digital)

Recommended Build

Tiny rig. Light parts. Everything that fits and lasts on the Ferrum 25.

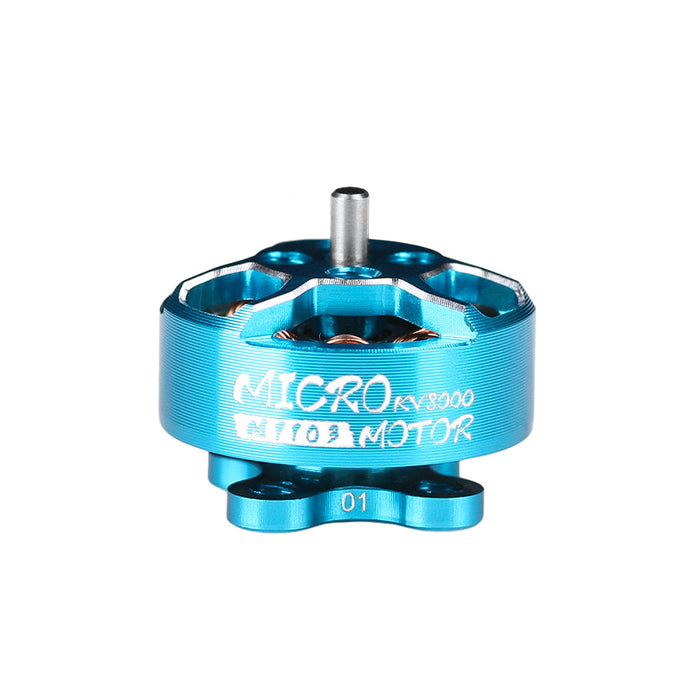

T-Motor F1103 8000KV Micro Motor
Motors

T-Motor F1103 8000KV

T-Motor F-series micro motor. 1103 brushless for 2-3S. Silent, efficient, punchy throttle response. Perfect torque-to-weight on the Ferrum 25.

Find Motors
JHEMCU F411 ELVTX AIO
All-in-One · FC + ESC + VTX + RX

JHEMCU F411 ELVTX

1S-2S AIO. F411 FC, integrated 400mW analog VTX, ELRS RX onboard. One board, full system, minimum weight.

Find Stack

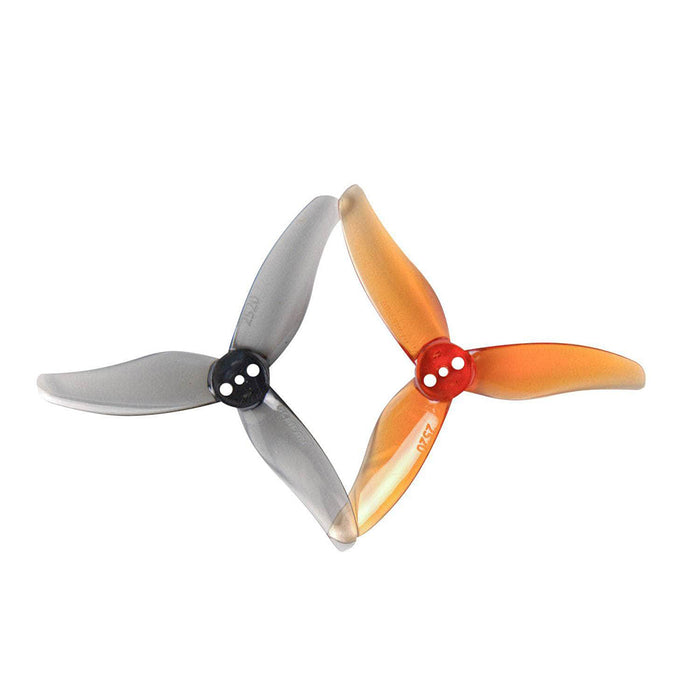

Gemfan Hurricane 2520
Propellers

Gemfan Hurricane 2520

2.5" tri-blade. Best balance of thrust and efficiency for the 1103 motor / 2S combo. Durable in tight crashes.

Find Props

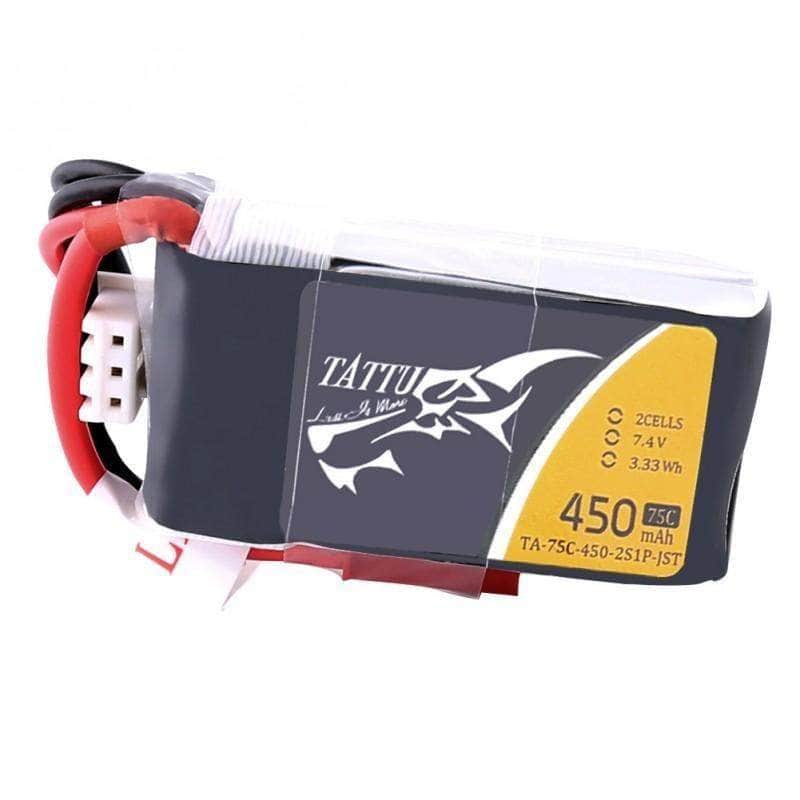

Tattu 2S 450mAh 75C LiPo
Battery · Tattu

Tattu 2S 450mAh 75C

2S Tattu pack sized for the Ferrum 25 deck. Reliable C-rating, consistent voltage delivery, no sag mid-throttle. Tattu only - one brand across every Ferrum build.

Find Battery

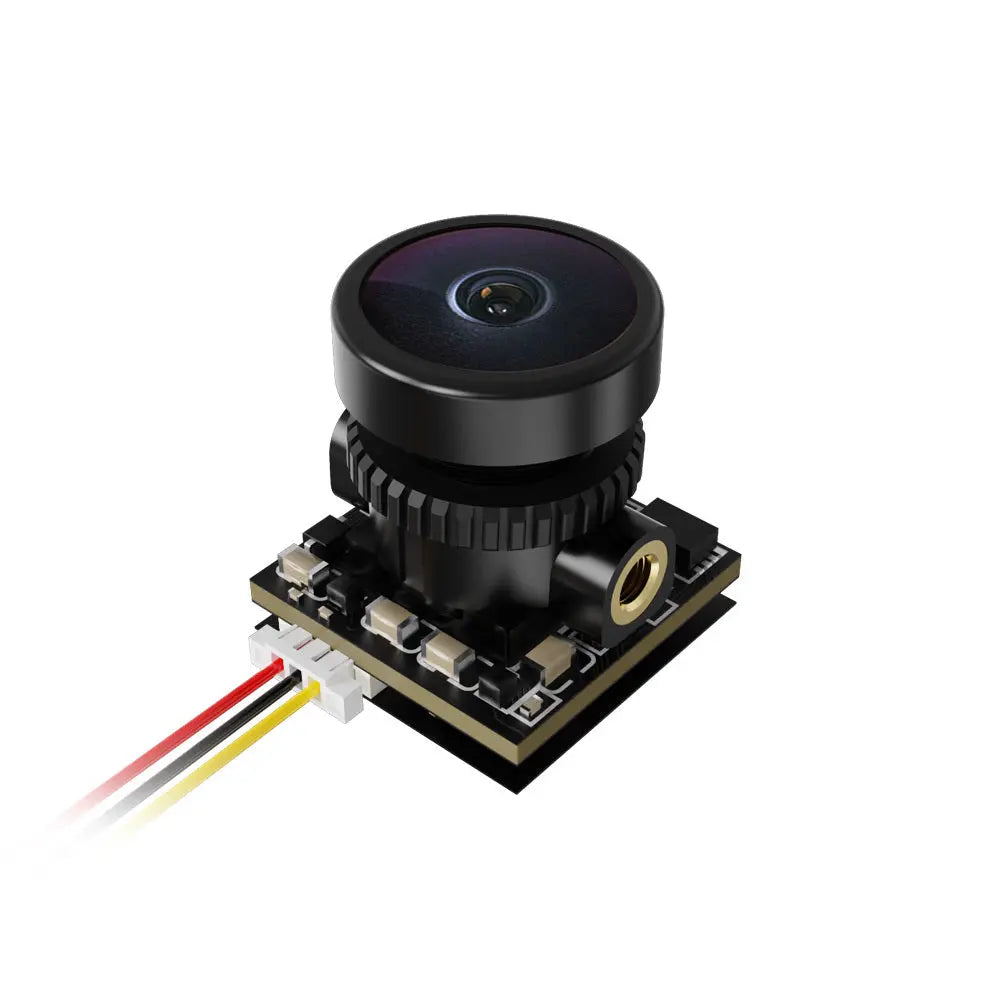

Runcam Nano 4 FPV Camera
Camera · Analog

Runcam Nano 4

14mm format. Light, sharp, low-latency. The analog camera we trust on the 25 for indoor and outdoor light conditions.

Find Camera
DJI O4 Air Unit
Video · Optional Digital

DJI O4 Lite

Want digital on the Ferrum 25? The O4 Lite fits. Crystal HD video, low weight, plug-and-play with most ELRS RXs.

VTX Options

Get Your Ferrum 25

Micro. Mighty. Engineered like the rest.

Shop Ferrum 25

What We Fly on Ferrum 35

3.5" cinematic and tight-line freestyle. Based on the Oscar Liang 3.5" build philosophy - Flash 1804 motors, F7 stack, DJI O4 Lite video.

Luceed.
Founder · Team Captain
  • FrameFerrum 35
  • MotorsFlash 1804 2450KV (6S)
  • StackHGLRC Zeus F7 Mini + 45A 4in1
  • PropsHQProp T76mm / Gemfan D63
  • BatteryTattu R-Line 6S 550mAh 95C
  • RXRadioMaster RP1 (ELRS)
  • VTXDJI O4 Lite (digital)
Ferrum Team
High-End · Pilot's Personal Pick
  • FrameFerrum 35
  • MotorsRCInPower GTS-V3 1606 3600KV
  • StackDiatone Mamba F405 Mk4 + 45A
  • PropsHQProp T76mm / Gemfan D63
  • BatteryTattu R-Line 6S 550mAh 95C
  • RXRadioMaster RP1 (ELRS)
  • VTXDJI O4 Lite (digital)

Recommended Build

Light, fast, capable. The 3.5" sweet spot for tight cinematic shots and aggressive freestyle.

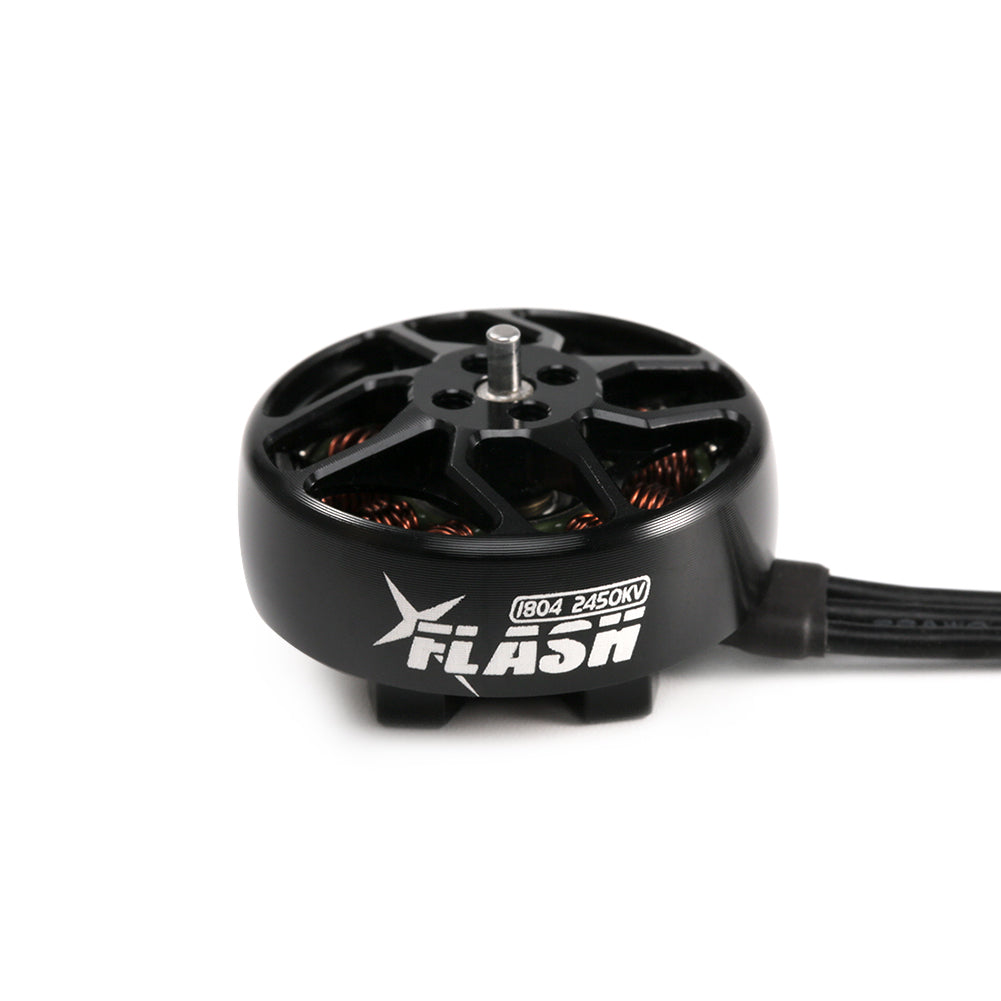

FlyfishRC Flash 1804 2450KV
Motors

Flash 1804 2450KV

6S setup - the modern 3.5" standard. Alt 3500KV variant for 4S. Smooth torque, light, perfect match for the Ferrum 35.

Find Motors

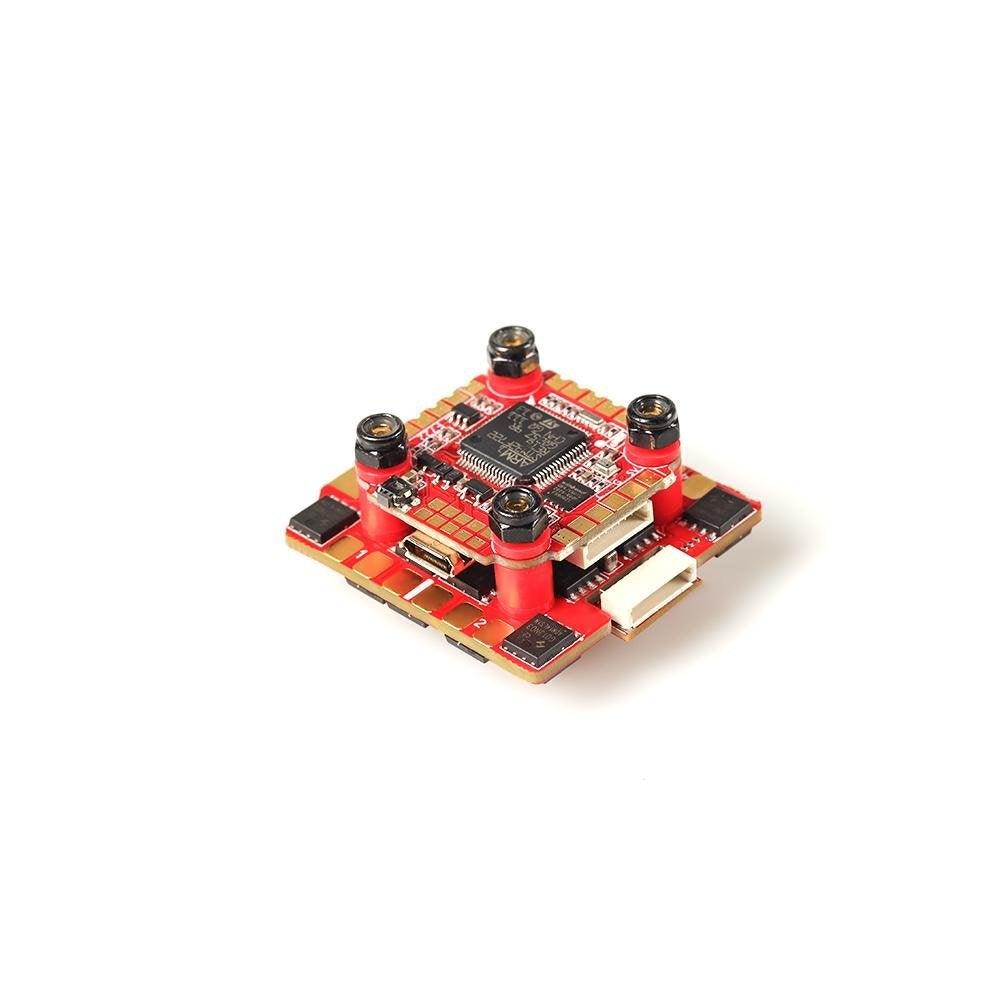

HGLRC Zeus F745 V2 Stack
Stack · FC + ESC

HGLRC Zeus F7 Mini + 45A 4in1

F7 brain, 45A 4in1 ESC. More than enough headroom for the 6S 1804 motors. Clean wiring, plenty of UART for DJI + ELRS + GPS.

Find Stack

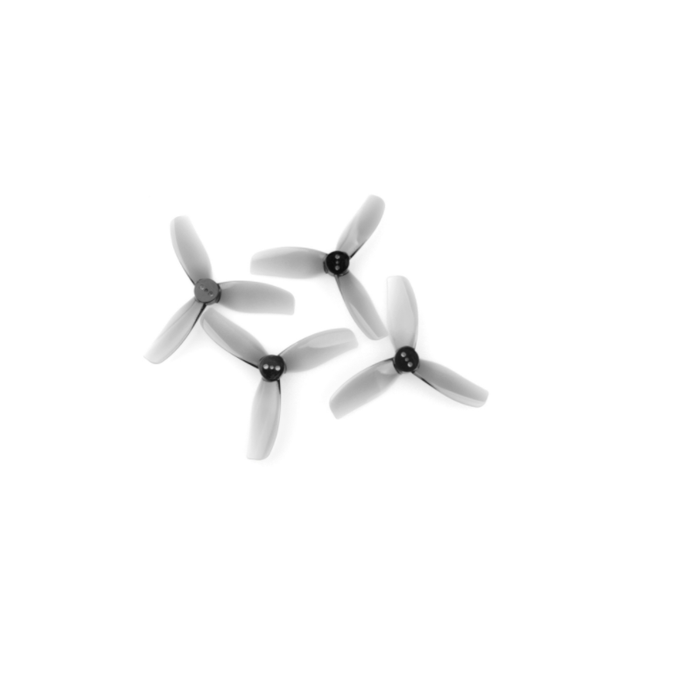

HQProp T76MMX3 Cinewhoop Propeller
Propellers

HQProp T76mm · Gemfan D63

Two solid choices for 3.5". HQProp T76mm for grip and lock-in. Gemfan D63 for efficiency. Pick whichever your local shop has.

Find Props

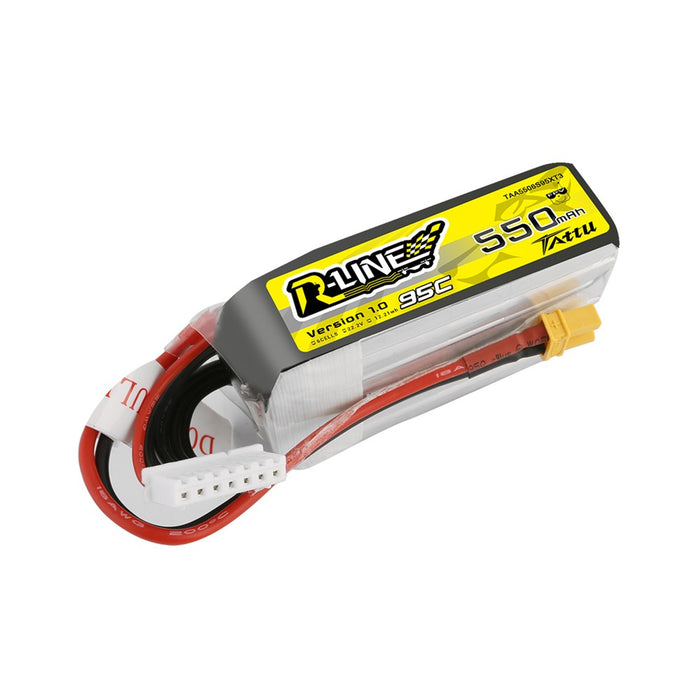

Tattu R-Line 6S 550mAh 95C
Battery · Tattu R-Line

Tattu R-Line 6S 550mAh 95C

Reference pack for the 1804 / 6S setup. ~300g AUW finished build. Tattu R-Line. Punchy, efficient, the right size for the Ferrum 35 deck.

Find Battery

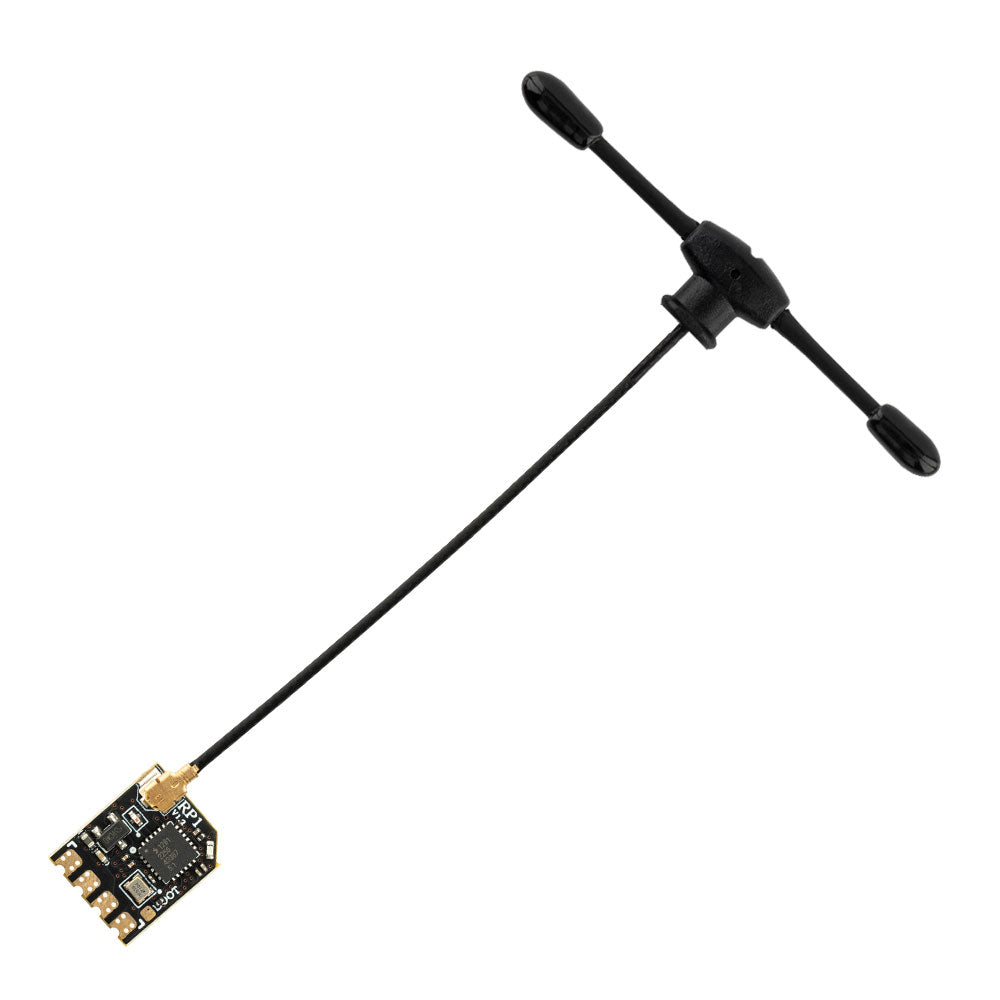

RadioMaster RP1 ELRS Receiver
Receiver

RadioMaster RP1

Same RX as the rest of the team kit. ELRS 2.4GHz. Tiny, light, reliable. One ecosystem across all your Ferrum builds.

Find RX
DJI O4 Air Unit
Video · Digital

DJI O4 Lite

The digital VTX we recommend on the 35. Light enough for the 3.5" class, HD-clean video, low latency. Plug-and-play in the Ferrum 35 cage.

VTX Options

Get Your Ferrum 35

3.5" sweet spot. Cinematic on demand, ripping when you ask for it.

Shop Ferrum 35

What Luceed & the Ferrum Team Fly

No mystery. No sponsor noise. One setup - proven, tested, repeated by every pilot on the team. If you want to fly what we fly, here it is.

Luceed.
Founder · Team Captain
  • FrameFerrum 50
  • MotorsAxisFlying 2207.5 1960KV
  • StackAxisFlying Argus ECO 60A F405
  • PropsGemfan 51466 V2
  • BatteryTattu R-Line V6 1480mAh 160C SQ
  • RXRadioMaster RP1 (ELRS)
  • AntennaOsprey
  • VTXPilot's choice
Ferrum Team
High-End · Pilot's Personal Pick
  • FrameFerrum 50
  • MotorsT-Motor F60 Pro V 2207.5 1950KV
  • StackT-Motor Velox F7 SE + V50A SE
  • PropsGemfan 51466 V2
  • BatteryTattu R-Line V6 1480mAh 160C SQ
  • RXRadioMaster RP1 (ELRS)
  • AntennaOsprey
  • VTXPilot's choice, fits all

Recommended Build

Every part below is what we run daily on the Ferrum 50. Tested in freestyle, cinematic, and ripping. These are the only recommendations - pick them and you're flying like the team.

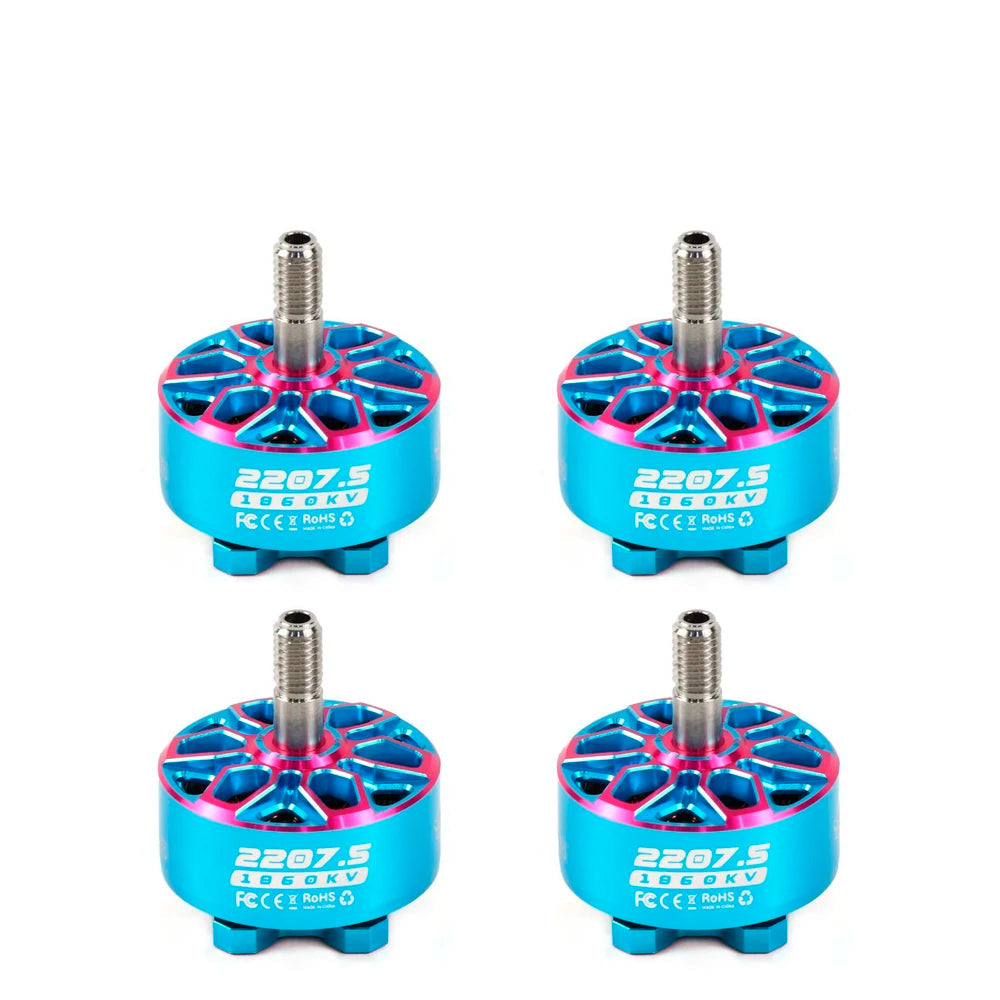

AxisFlying 2207.5 Bando 1960KV
Motors

AxisFlying 2207.5 Bando 1960KV

The only motors we recommend for Ferrum 50. Bando-tuned, smooth throttle, and the exact KV the frame is designed around for 6S 1480 packs.

Get Motors
AxisFlying Argus ECO 60A F405 Stack
Stack · FC + ESC

AxisFlying Argus ECO 60A F405

30x30 stack. F405 FC paired with a 60A 4-in-1 ESC. Handles the 1960KV / 6S combo without breaking a sweat. Clean wiring, room for any VTX.

Get Stack
Gemfan Hurricane 51466 V2
Propellers

Gemfan 51466 V2

Best 5" prop ever made - in our opinion and after thousands of packs. Lock-in, efficiency, durability. Don't fly anything else on the Ferrum 50.

Find Props

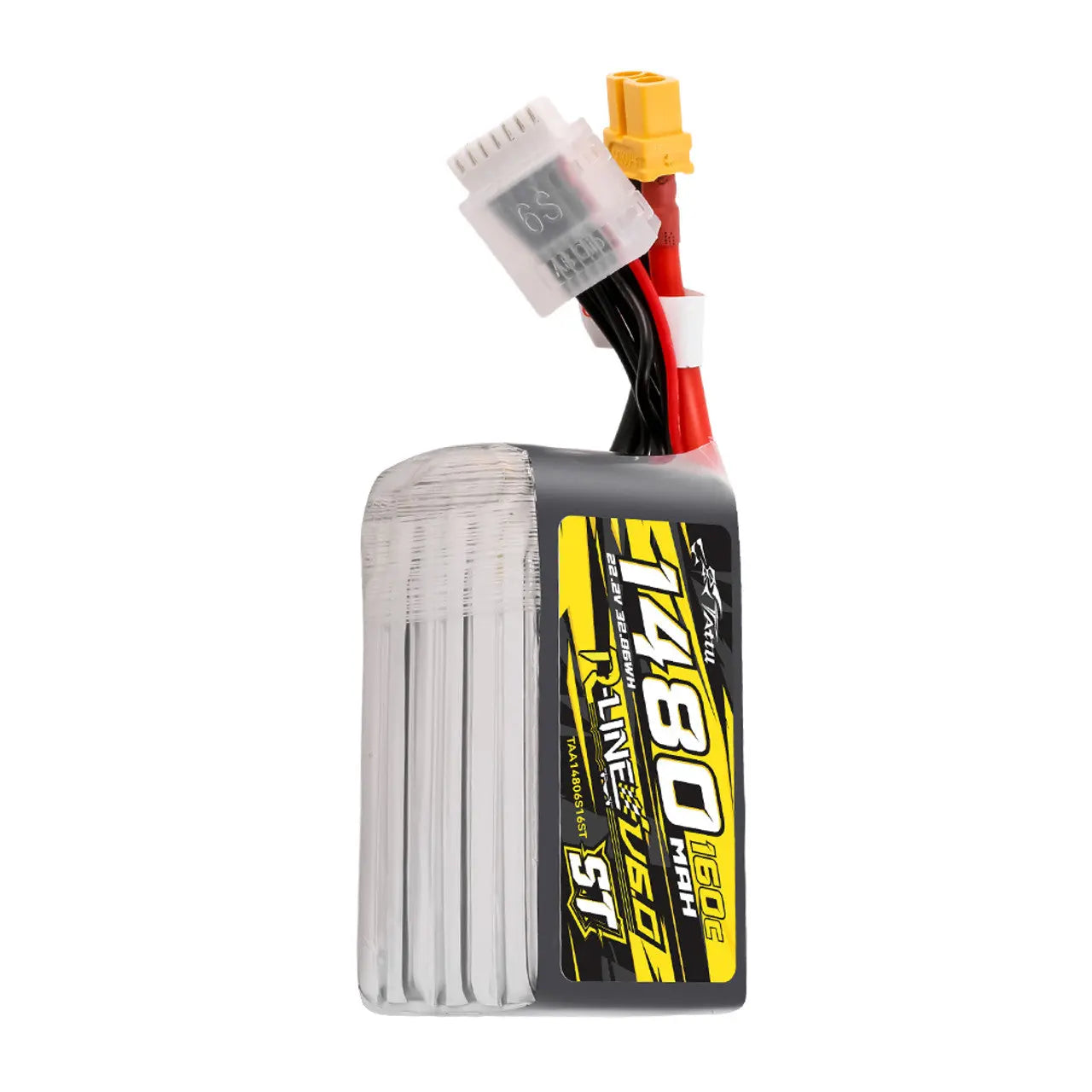

Tattu R-Line V6 1480mAh 160C 6S SQ
Battery

Tattu R-Line V6 1480mAh 160C

Square format. 6S. Latest Tattu generation. Unlocks full punch of the 1960KV motors without sagging. Reference battery for the team.

Find Battery
RadioMaster RP1 ELRS Receiver
Receiver

RadioMaster RP1

ELRS 2.4GHz. Tiny, light, reliable. Plug it in, bind it, fly. Zero drama, full range.

Find RX
FlyFishRC Osprey 5.8GHz Antenna
Antenna

Osprey

Linear, tough, takes crashes. The Ferrum 50 was built around clean antenna mounting - Osprey is the match.

Find Antenna
VTX
Video · Pilot's Choice, Fits All

Any VTX You Want

Pilot's choice, fits all. DJI O3, DJI O4, OG Air Unit, Walksnail, full analog - the Ferrum 50 takes every VTX on the market. Run what your eyes and wallet prefer. The frame won't hold you back.

VTX Options

Get Your Ferrum 50

FPV done better. By a pilot for pilots. Build the same rig the team flies.

Shop Ferrum 50

What We Fly on Ferrum 70

7" long range. Cinematic class. GPS-backed, dual diversity, crystal clear vision. The setup we trust for distance, altitude, and full-pack endurance.

Luceed.
Founder · Team Captain
  • FrameFerrum 70
  • MotorsiFlight Xing 2809 1250KV
  • ESCT-Motor Velox 65A · Bluejay 24kHz
  • PropsGemfan 7" pitch 5×3 (or 3.7/4)
  • BatteryTattu 6S 3300mAh 35C
  • RXRadioMaster BR3
  • AntennaGemini diversity 898MHz + 2.4GHz
  • GPSFoxeer M10 (25mm antenna)
  • Caps2× Panasonic 50V 680μF
  • VTXPilot's choice, fits all
Ferrum Team
High-End · Pilot's Personal Pick
  • FrameFerrum 70
  • MotorsT-Motor F90 V2 1300KV
  • ESCDiatone Mamba MK4 F60_PRO 60A
  • PropsGemfan 7" pitch 5×3 (or 3.7/4)
  • BatteryTattu 6S 3300mAh 35C
  • RXRadioMaster BR3
  • AntennaGemini diversity 898MHz + 2.4GHz
  • GPSFoxeer M10 (25mm antenna)
  • Caps2× Panasonic 50V 680μF
  • VTXPilot's choice, fits all

Recommended Build

Long range is system engineering. Every component on the Ferrum 70 is chosen so you come back with the pack, the drone, and the footage.

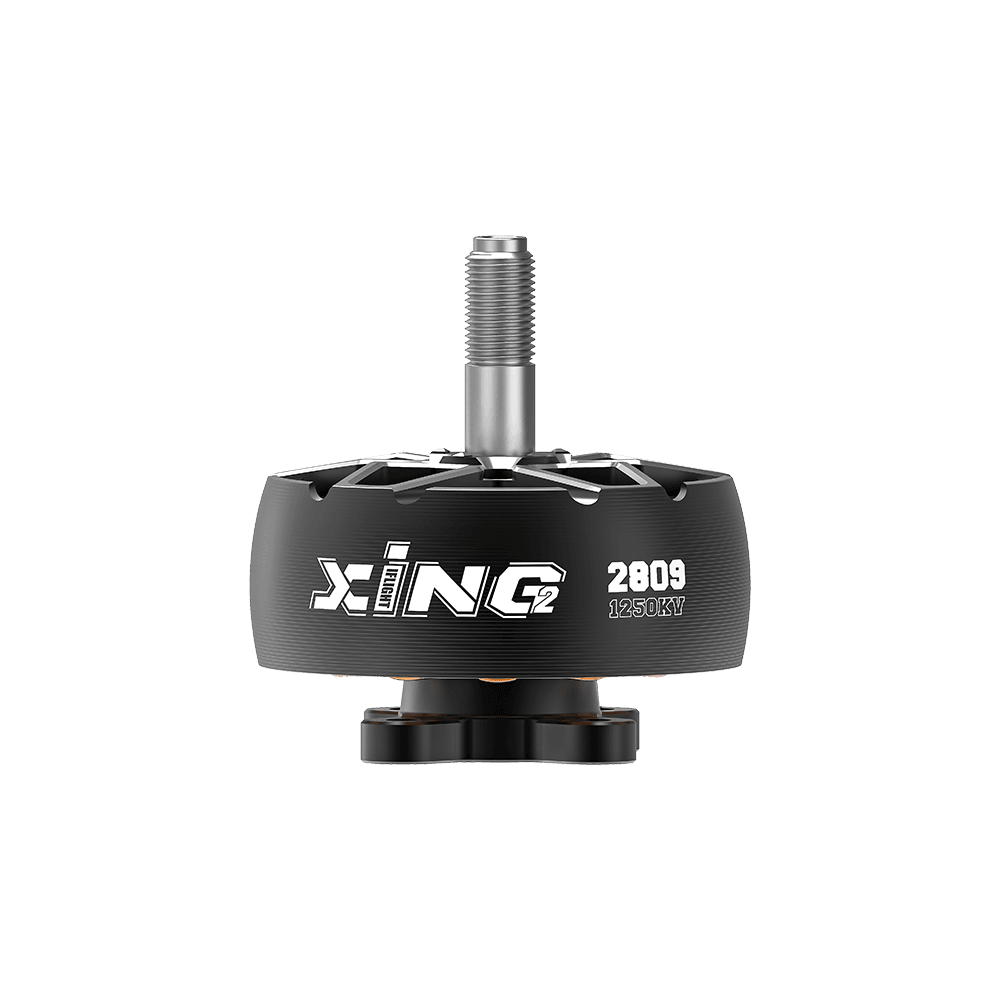

iFlight Xing2 2809 1250KV
Motors

iFlight Xing 2809 1250KV

7" long range workhorse. Low KV for efficiency on 6S. Smooth, durable, the long-range standard for years.

Find Motors

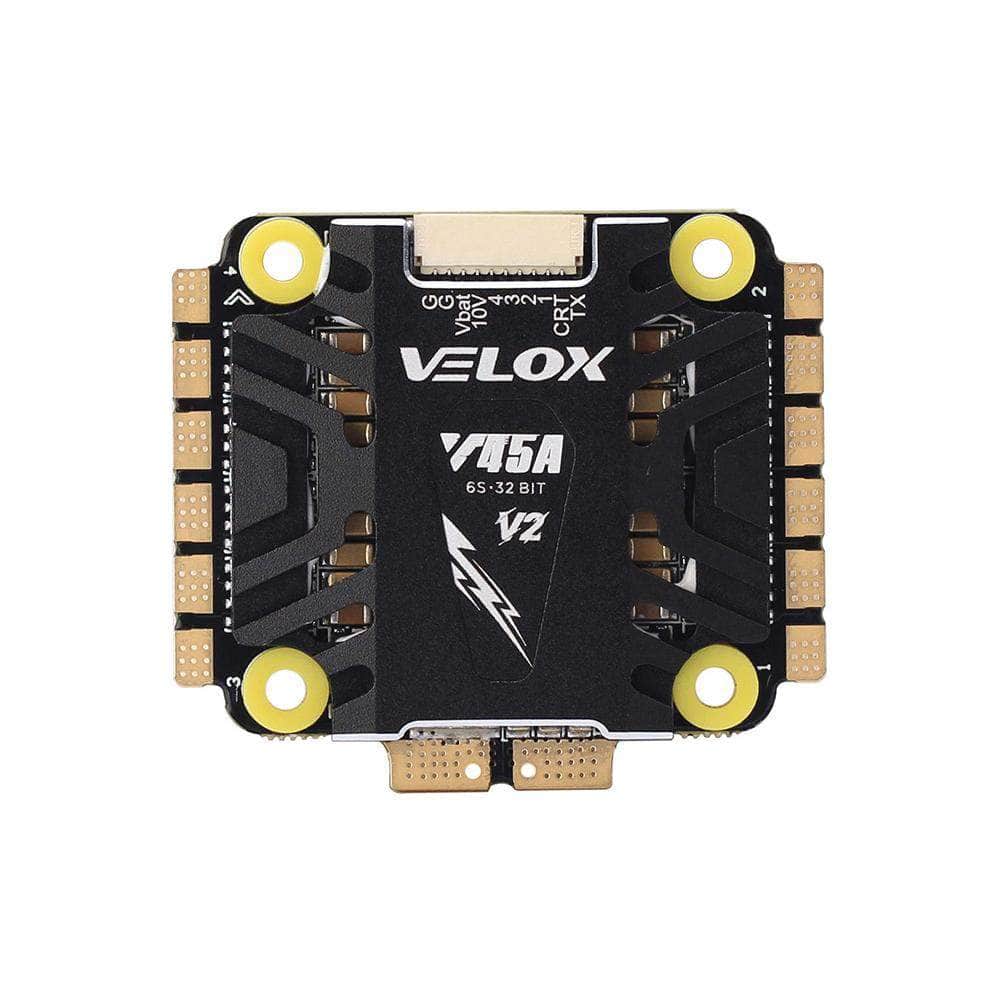

T-Motor Velox V2 4in1 ESC
ESC · 4in1

T-Motor Velox 65A+ · Bluejay 24kHz

65A minimum. T-Motor Velox flashed Bluejay 24kHz for the cleanest signal-to-noise on long-pull throttle ramps. Headroom matters at 7".

Find ESC

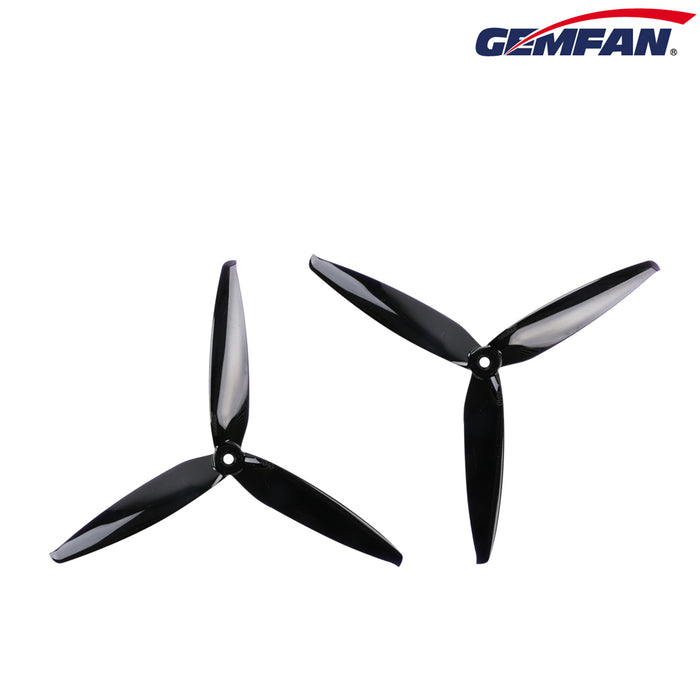

Gemfan Flash 7040 7 inch Propeller
Propellers

Gemfan 7" · Pitch 5×3

7" diameter, 5×3 pitch sweet spot (Gemfan Flash 7040). If Gemfan stocks 3.7 or 4 pitch versions, those work equally well - depends on availability.

Find Props
Tattu 6S 3300mAh 35C Long Range
Battery · Tattu Long Range

Tattu 6S 3300mAh 35C

Range pack for the Ferrum 70. Long endurance, balanced weight on the frame. Tattu only - one battery brand across every Ferrum build.

Find Battery

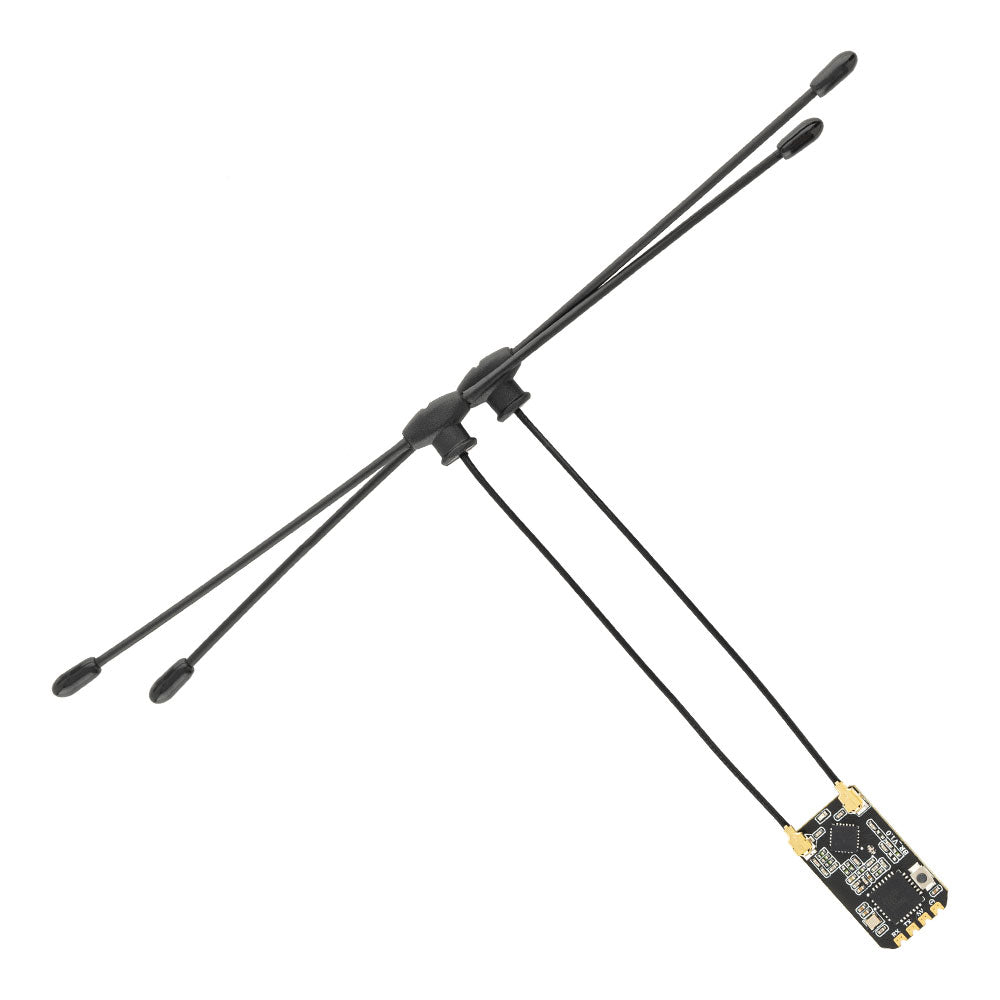

RadioMaster Bandit BR3 ELRS 915MHz
Receiver · 915MHz Long Range

RadioMaster Bandit BR3

915MHz ExpressLRS receiver. Built-in TCXO for stable signal, 500mW telemetry output. The right RX for distance flying where you can't afford a single drop.

Find RX

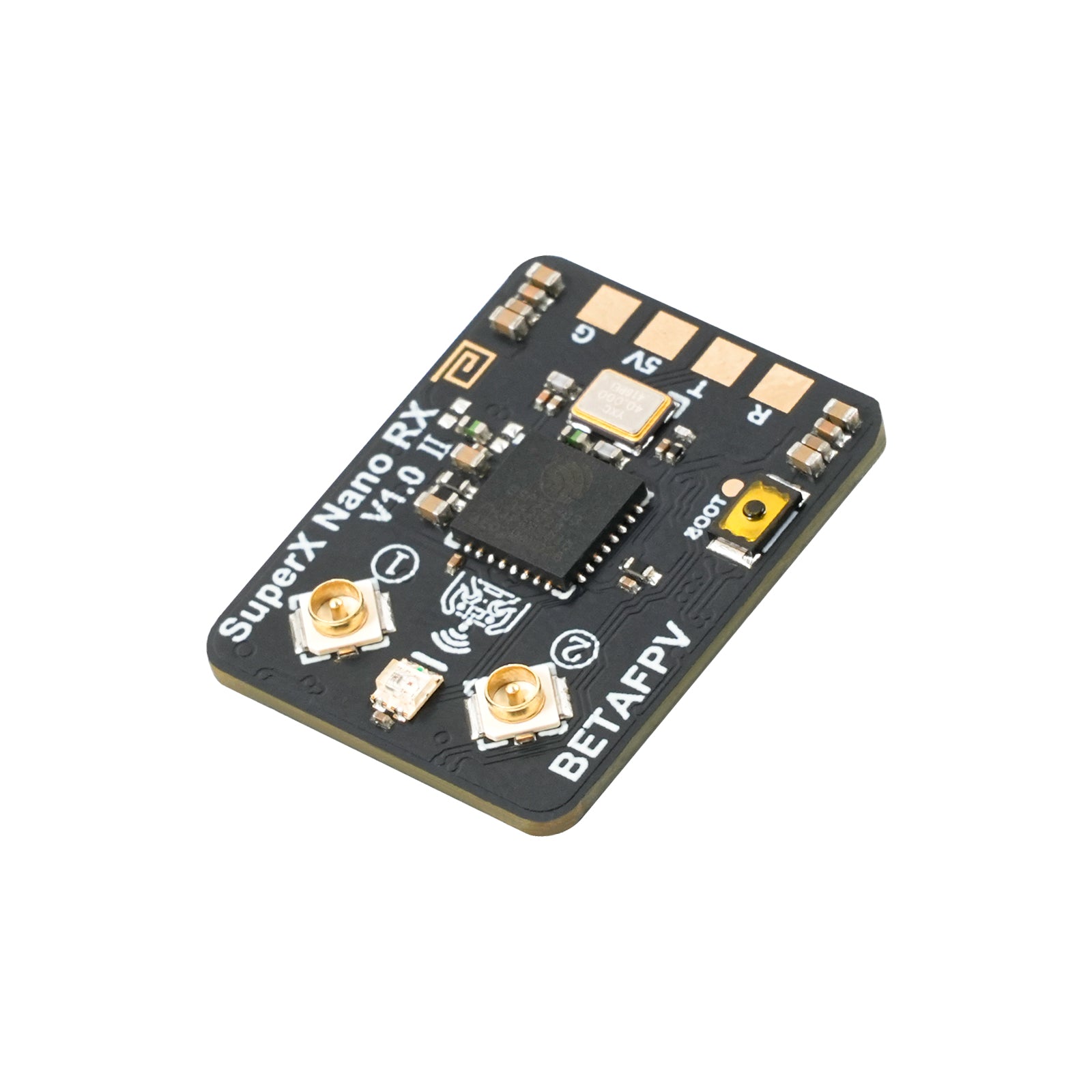

Gemini Diversity Dual-Band Receiver
Diversity · Dual Band

Gemini 898MHz + 2.4GHz

Dual-band Gemini diversity. 898MHz primary for distance, 2.4GHz for backup and clean tight-angle reception. Built for long-range loss-of-signal margin.

Find Diversity

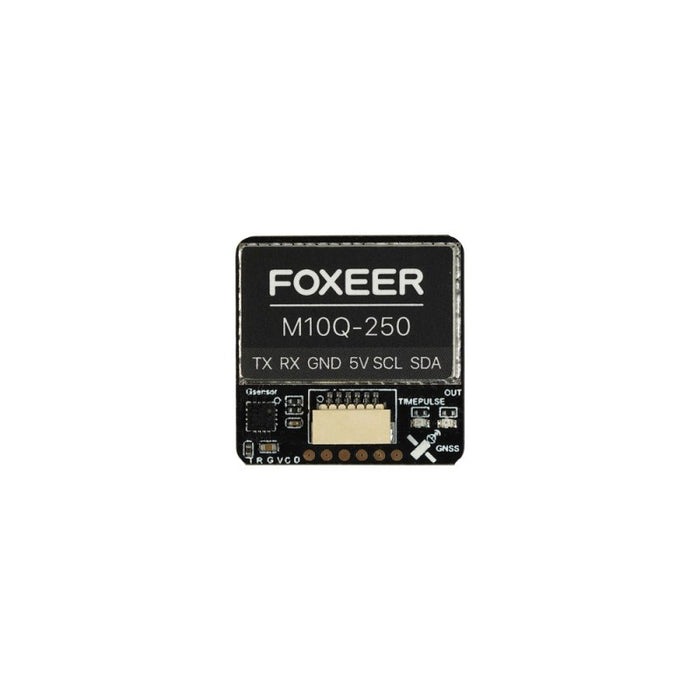

Foxeer M10Q 250 GPS Compass Module
GPS · Positioning

Foxeer M10Q-250 (25mm)

M10 chip, IST8310 compass, 25mm ceramic antenna pad. Drop to 20mm minimum if space is tight - but no smaller. Fast lock, holds satellites under canopy.

Find GPS
Panasonic Low ESR Capacitors
Capacitors

2× Panasonic 50V 680μF

Twin caps on the XT60 leads. Cleans video, smooths voltage spikes from the 7" motors, protects the ESC across long throttle bursts.

Find Caps
VTX
Video · Pilot's Choice, Fits All

Any VTX You Want

Pilot's choice, fits all. DJI O3, DJI O4, OG Air Unit, Walksnail, full analog - the Ferrum 70 takes every VTX on the market. Run what your eyes and wallet prefer. The frame won't hold you back.

VTX Options

Get Your Ferrum 70

7" long range. Engineered for the distance pack. Built to come home.

Shop Ferrum 70

What We Fly on Ferrum S50

Sbang variant of the Ferrum 50. Same frame DNA, BlackBird V4 power, latest Tattu generation. For pilots who push the 5" envelope.

Luceed.
Founder · Team Captain
  • FrameFerrum S50
  • MotorsAxisFlying BlackBird V4 2307.3 2060KV
  • StackT-Motor Velox CINE F7 + V50A SE
  • PropsGemfan Yuki 5129 (5129.3)
  • BatteryTattu R-Line V6 1600mAh 6S 160C SQ
  • RXRadioMaster RP1 (ELRS)
  • AntennaOsprey
  • VTXPilot's choice
Ferrum Team
High-End · Pilot's Personal Pick
  • FrameFerrum S50
  • MotorsHyperlite Race 2306 2050KV
  • StackAxisFlying Argus ECO 60A F405
  • PropsGemfan Yuki 5129 (5129.3)
  • BatteryTattu R-Line V6 1600mAh 6S 160C SQ
  • RXRadioMaster RP1 (ELRS)
  • AntennaOsprey
  • VTXPilot's choice, fits all

Recommended Build

Same proven 5" parts as the Ferrum 50 - swapped motors for top-KV BlackBird V4 sbang power, bigger Tattu V6 pack to feed it.

AxisFlying BlackBird V4 2307.3 2060KV Sbang
Motors · Extreme KV

BlackBird V4 2307.3 2060KV

AxisFlying co-brand with BlackBird V4. Highest KV available for 6S - 2060KV. Extreme freestyle and sbang specific. For top pilots only.

Get Motors

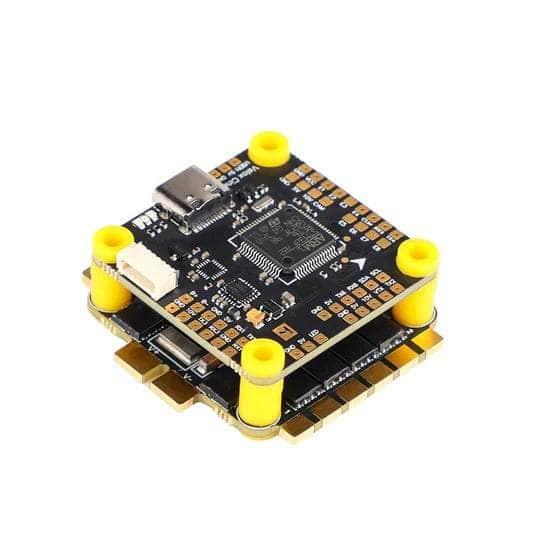

T-Motor Velox CINE F7 + V50A SE Stack
Stack · FC + ESC

T-Motor Velox CINE F7 + V50A SE

30x30 stack. F722 FC with 42688 gyro + 50A 32-bit 4in1 ESC. Tested 1000+ flights on Velox V3 motors. Right match for the BlackBird V4 sbang power band.

Get Stack

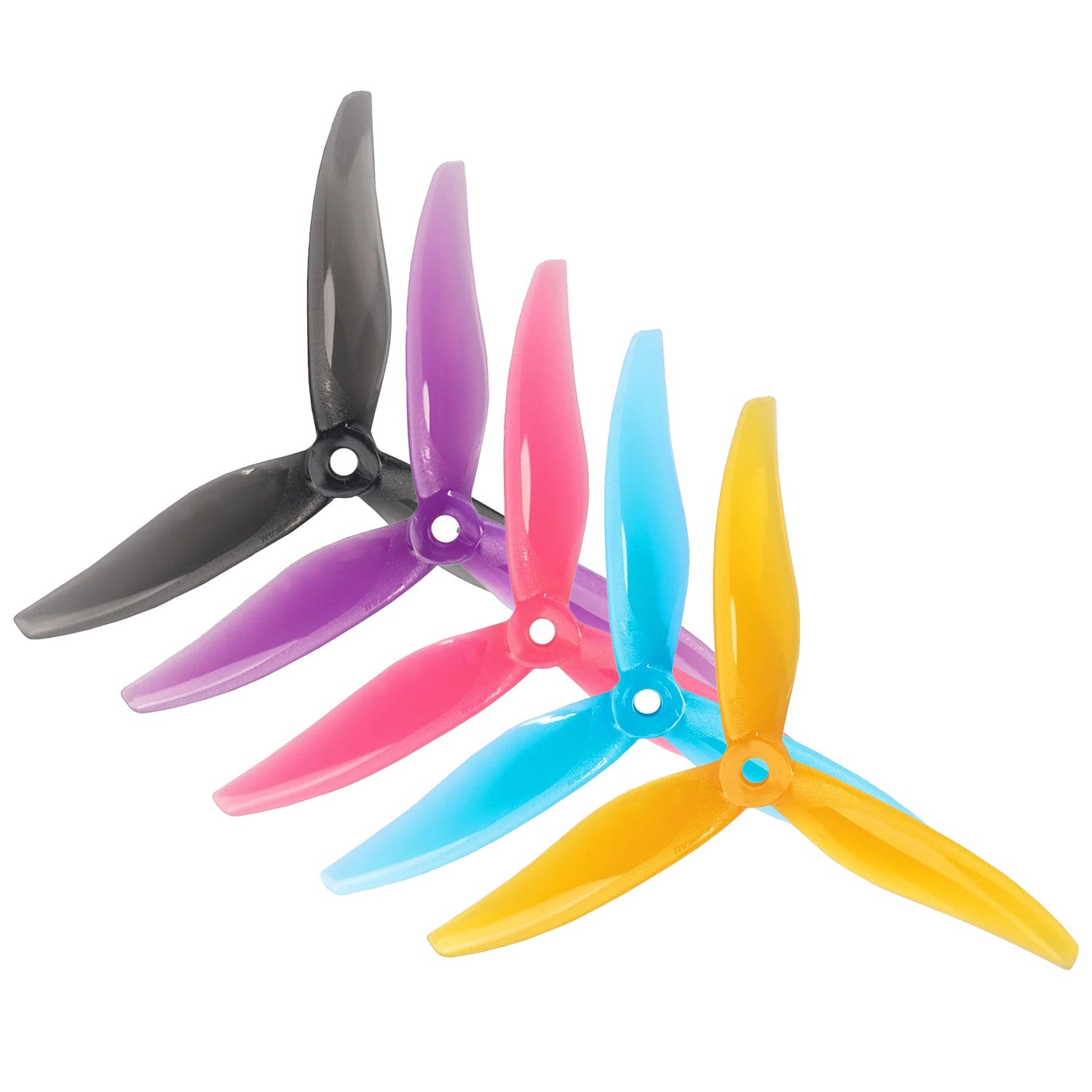

Gemfan Yuki 5129 3-Blade Propeller
Propellers

Gemfan Yuki 5129 (5129.3)

5" 3-blade race prop. 2.9 pitch tuned for high-KV motors. Smooth power curve, exceptional grip. Match for the 2060KV BlackBird V4 sbang setup.

Find Props
Tattu R-Line V6 1600mAh 6S SQ
Battery · Latest Tattu

Tattu R-Line V6 1600mAh 6S SQ

Latest Tattu generation. 1600mAh SQ format. Bigger pack to feed the 2060KV BlackBird V4. Lower internal resistance, higher energy density than V5. Only newest Tattu - no compromise.

Find Battery
RadioMaster RP1 ELRS Receiver
Receiver

RadioMaster RP1

Same RX as the rest of the team. ELRS 2.4GHz. Tiny, light, reliable. Plug it in, bind it, fly.

Find RX
FlyFishRC Osprey 5.8GHz Antenna
Antenna

Osprey

Linear, tough, takes crashes. The Ferrum S50 was built around clean antenna mounting - Osprey is the match.

Find Antenna
VTX
Video · Pilot's Choice

Any VTX You Want

DJI O3, DJI O4, OG Air Unit, Walksnail, full analog - the Ferrum S50 fits them all. Run what your eyes and wallet prefer.

VTX Options

Get Your Ferrum S50

Sbang variant. BlackBird V4 power. Latest Tattu. Only for pilots who push the envelope.

Shop Ferrum S50

Build Tips

Universal tips from the team bench. Apply to every Ferrum model.

Capacitor

Always run a low-ESR cap on the XT60 leads. Cleans video, protects the ESC, extends pack life. Larger frames (50/70/S50) - twin caps.

Antenna Mounting

TPU mounts always. Keep antennas clear of carbon and motor wires. Linear durability is the point - don't waste it with bad placement.

VTX Standoffs

For DJI O3/O4 Pro use longer standoffs and a TPU mount. Don't compress the top plate against the VTX board. For O4 Lite - standard standoffs work.

Prop Direction

Run props in (default) on all Ferrum models. Quieter, cleaner camera, fewer rocks chewed.

Battery Strap

Square pack sits flat on the top plate. Use a battery pad, route the strap through the slots - no slipping mid-flip.

Betaflight

Start with stock filtering for every model. Don't chase RPM tunes until the frame, motors, and props are dialed. Especially true for the S50 with high-KV BlackBird V4.
